characteristic

• Detection of train presence using audio frequency.
• 4 uplink frequencies (F1, 3, 5, 7)) and 4 downlink frequencies (F2, 4, 6, 7) are allocated and used.
• Transmission of coded control information to onboard devices (trains).
• Train location detection, train speed indication according to the operation interval with the front train, vehicle operation information transmission.
• Transmission of coded control information to moving trains through ground devices.
• Securing safety by automatically stopping the train when controlling fail-safe.

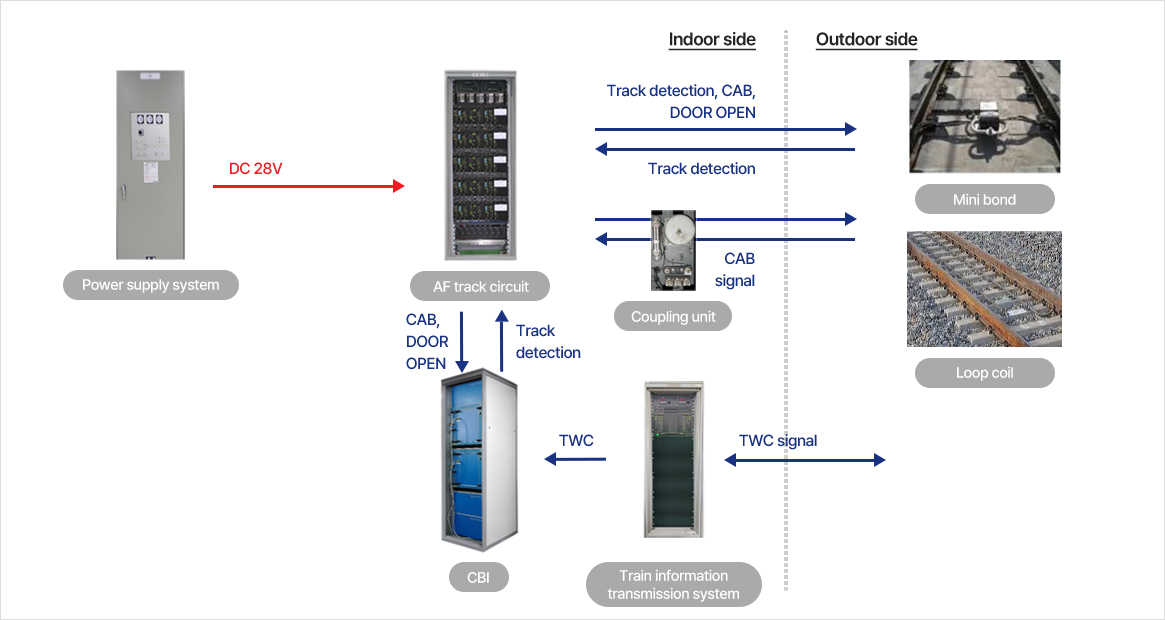

System configuration

characteristic

• Detection of train presence using audio frequency.
• 4 uplink frequencies (F1, 3, 5, 7)) and 4 downlink frequencies (F2, 4, 6, 7) are allocated and used.
• Non-insulated track circuit between AC and DC train sections.
• Common use of block sections within and between stations.

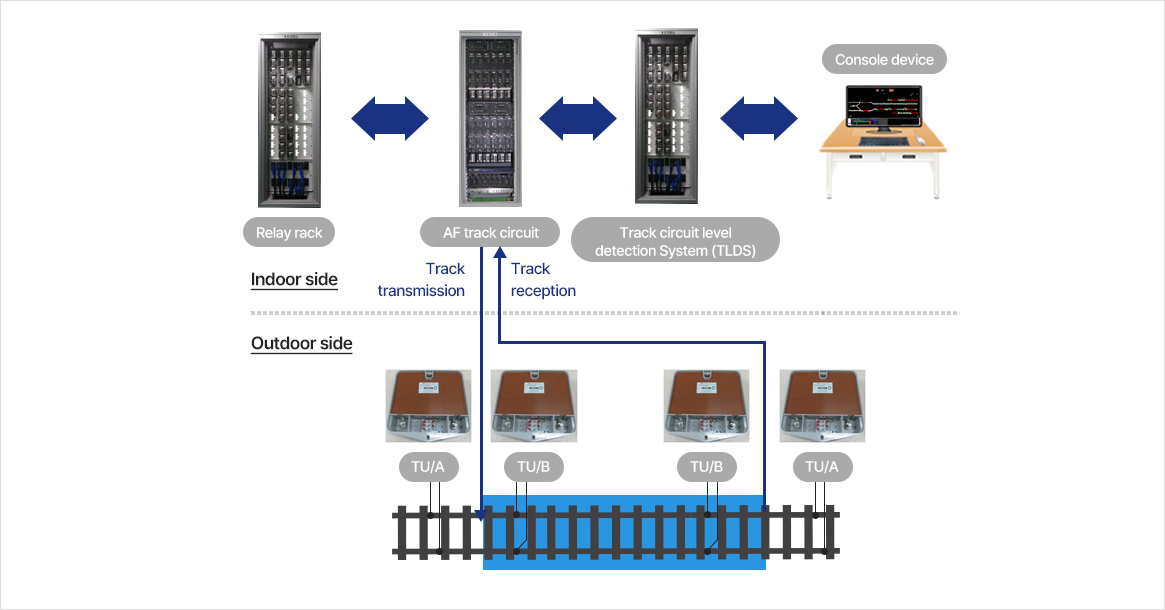

System configuration / In-station

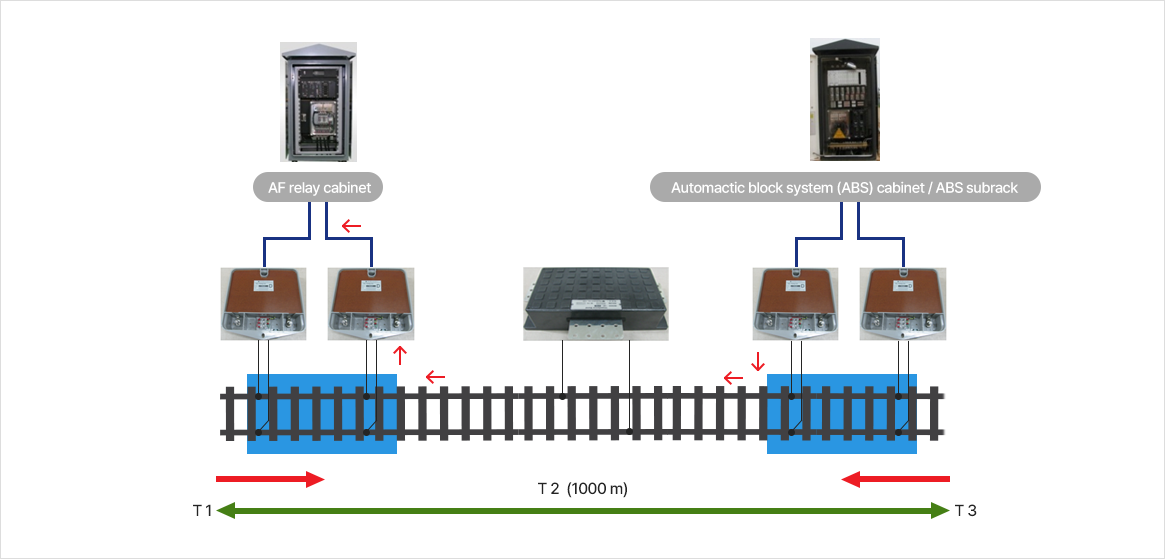

System configuration / Block section

Characteristic

• Detection of train wheels using sensors.
• Checking whether there is a train, direction of operation, and speed of operation.
• 2-wire PLC power line and long-distance communication.
• Self-diagnosis and data confirmation by visual panel.
• Increased safety and economic system of train operation.

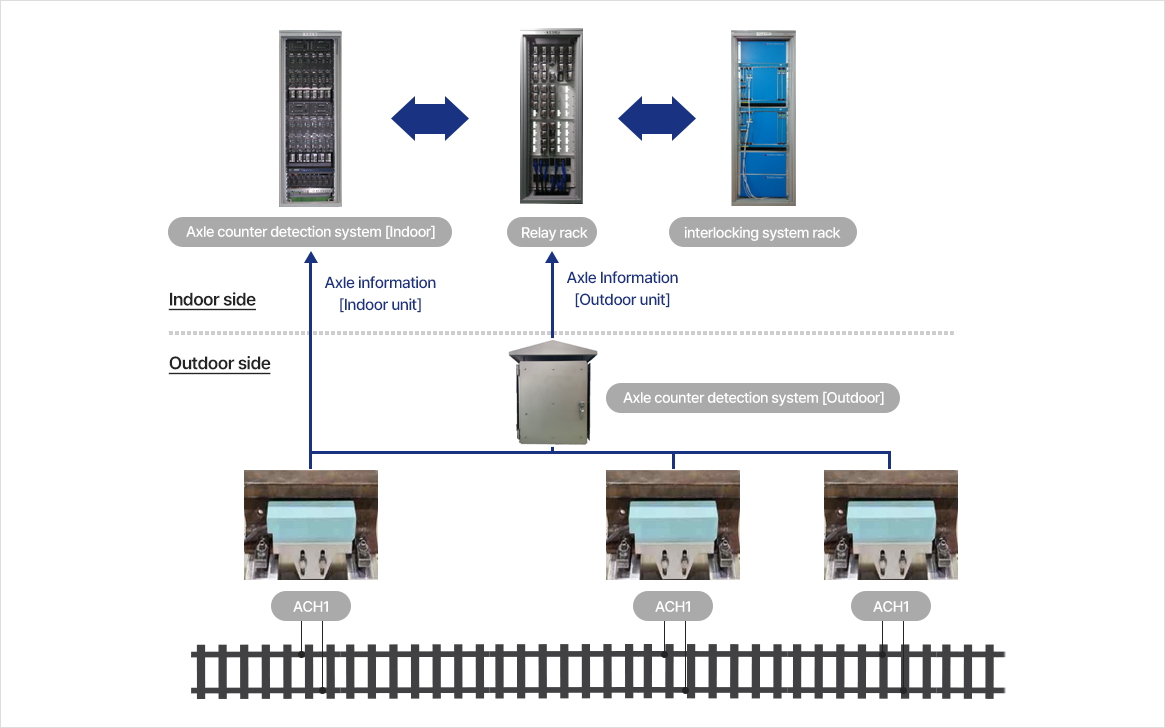

System configuration

Characteristic

• Displaying train occupancy information and on-site change information.
• Prevention of failure in advance by checking the voltage value of the track circuit transmitter and receiver in real time.
• Real-time monitoring of track circuits and on-site facility operation and failure.
• Real-time monitoring of signal systems’ status at each station.

시스템 구성
